Figure 4

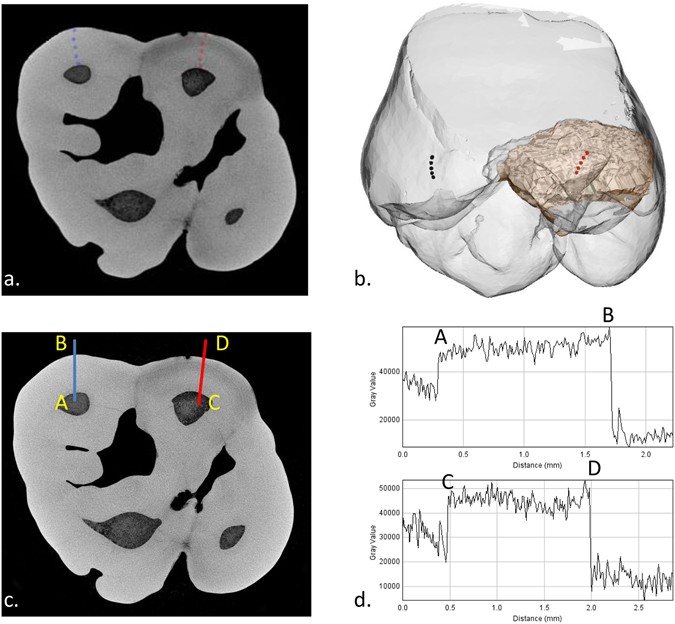

Images of microcomputed tomography analyses in 3D and 2D: (a,b) location of 5 analysis cubes from DEJ to surface on normal (blue cubes) and discoloured (red cubes) areas. (c,d) location of profile lines from EDJ to surface through normal (AB) and discoloured (CD) areas.
