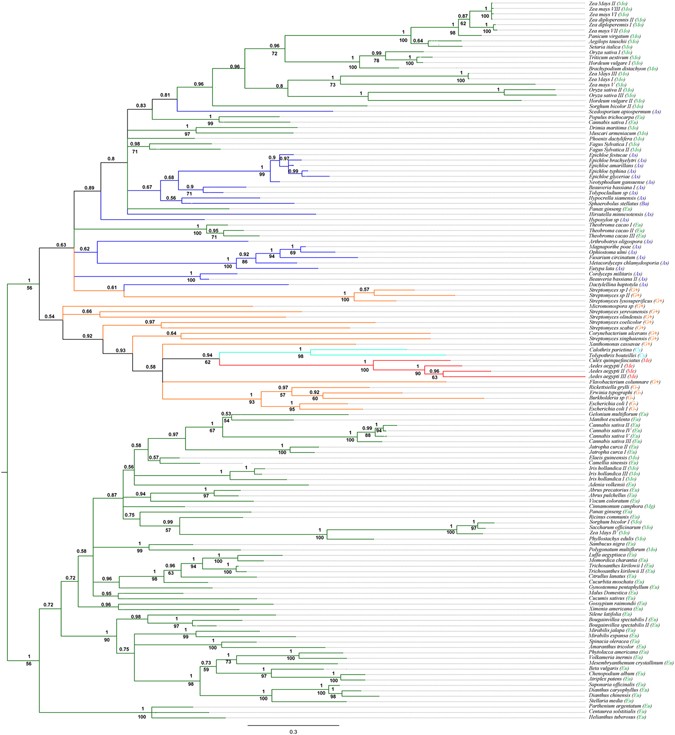

Figure 2
From: Metazoan Ribosome Inactivating Protein encoding genes acquired by Horizontal Gene Transfer
Phylogenetic tree of RIP proteins family. Bayesian tree topology based on a matrix analysis of 133 proteins sequences with 209 informative sites is presented. Numbers above branches indicate PP support values. Bootstrap values (BS) >50% are shown below branches for nodes where topology of ML analysis was coincident with Bayesian inference. Lineages are indicated by different colors as follows: green (Plantae, including Mo: monocots; Eu: eudicots and Mg: magnoliids), blue (Fungi, including As: Ascomycota and Ba: Basidiomycota), red (Me: Metazoa), orange (Bacteria, including G+: Gram positive, G-: Gram negative, and excluding Cyanobacteria) and turquoise (Cy: Cyanobacteria). The clade of Culicinae RIPs is emphasized with red branches. Information related to the sequences used to infer these trees is available in Supplementary Table 2.
