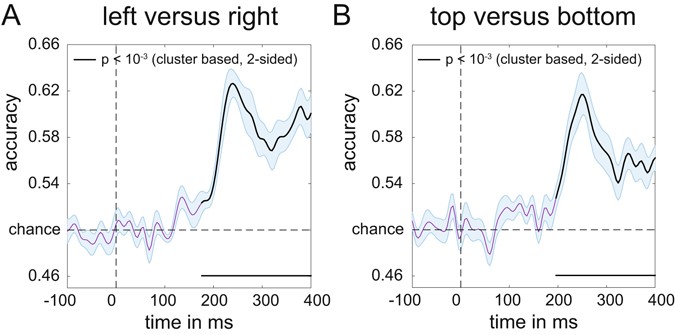

Figure 4
From: Multivariate EEG analyses support high-resolution tracking of feature-based attentional selection
Classification accuracy of target position over time in Experiment 1. (A) Classification accuracy for left versus right targets. (B) Classification accuracy for top versus bottom targets. Black lines have p < 10−3 using cluster based permutation testing. Shaded areas are +/− s.e.m. Peaks respectively at 244 ms (left-right) and 248 ms (top-bottom). Note the similar temporal evolution between N2pc (Fig. 3) and classification accuracy here.
