Figure 4
From: Large scale phosphoprotein profiling to explore Drosophila cold acclimation regulatory mechanisms

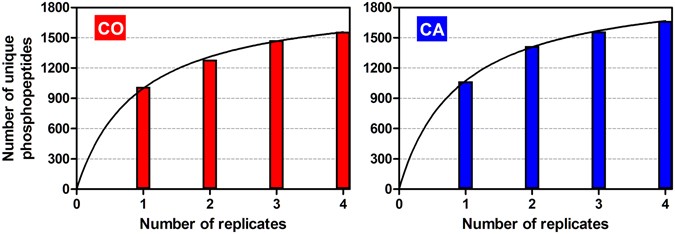

Saturation curves in CA (blue) and CO (red) conditions. The horizontal axis depicts the number of biological replicates and the vertical axis the cumulated number of unique phosphopeptides in each of these replicates. The lines represent non-linear curve fitting (details about the equation are in the text).
