Figure 7
From: Large scale phosphoprotein profiling to explore Drosophila cold acclimation regulatory mechanisms

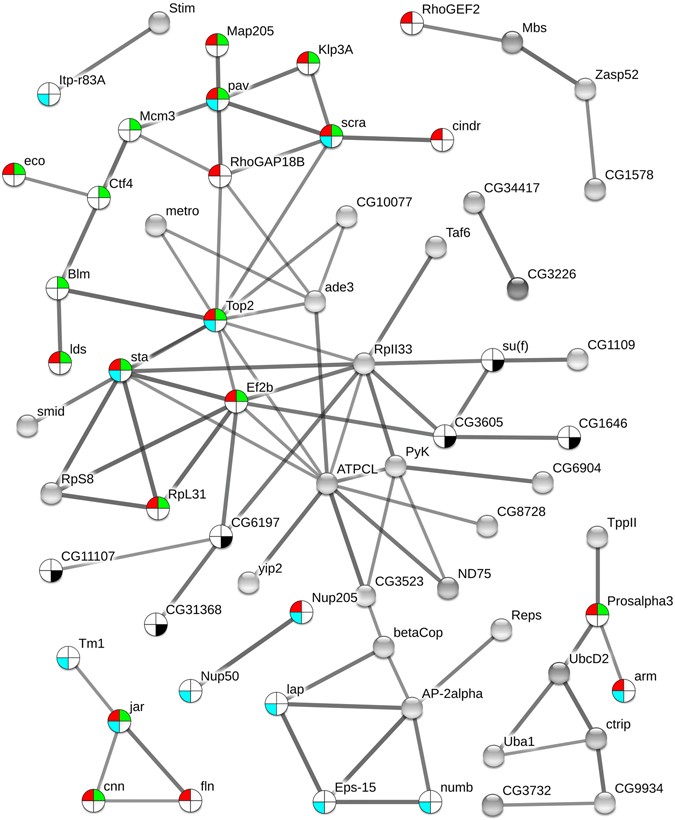

Phosphoprotein interaction network resulting from the set of proteins positively regulated by phosphorylation events [list CA(+)] with acclimation. The phosphoproteins set was analyzed for putative protein-protein interactions using STRING program with default settings except that we only considered high confidence interactions (with score > 0.7). Disconnected nodes are not shown in the network. Phosphoproteins involved in the four major GO-terms superclusters detected in REVIGO (see Fig. 8) are highlighted within the network with different colors: cytoskeleton organization (red), mitotic cell cycle (green), cellular localization (blue), and mRNA processing (dark).
