Figure 4
From: Rapid susceptibility profiling of carbapenem-resistant Klebsiella pneumoniae

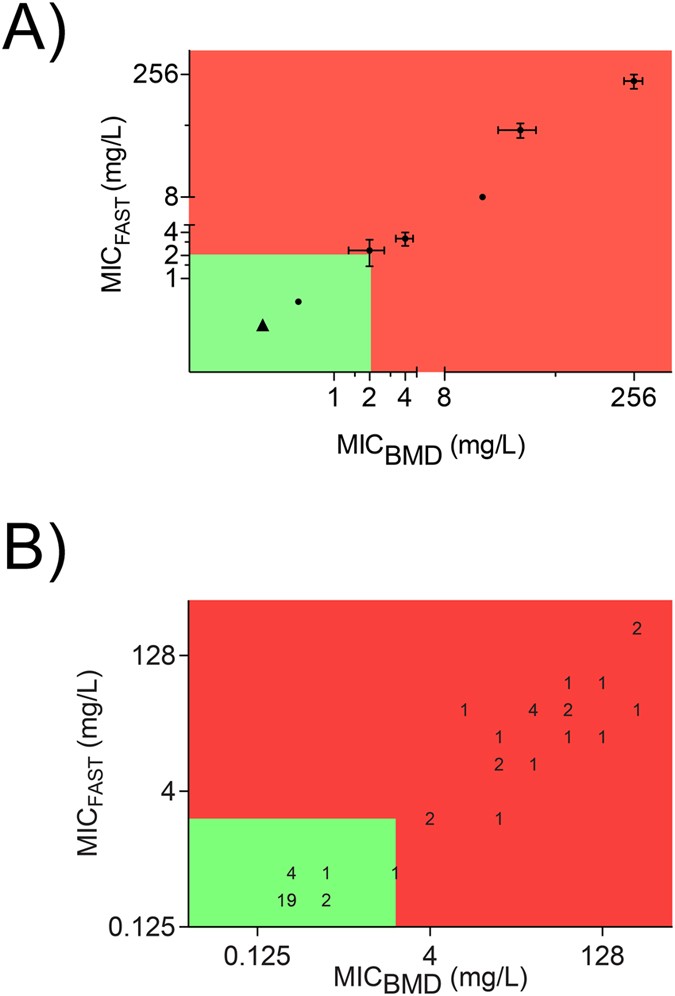

FAST accurately predicted MICBMD across our collection of K. pneumoniae isolates. Coloured regions represent the qualitative susceptibility (green)/non-susceptible (red) determination of (A) the initial 10 isolates tested (mean MICBMD/FAST and SEM), a strong positive correlation was observed (r = 0.899, p < 0.0001), represents four isolates, all with perfectly concordant MICBMD,FAST coordinates. (B) Full 48 isolate collection. Numerals indicate the number of isolates occupying the same MICBMD, MICFAST coordinates. Across the full collection of isolates, a strong positive correlation was observed (Matthew’s correlation co-efficient = 0.918).
