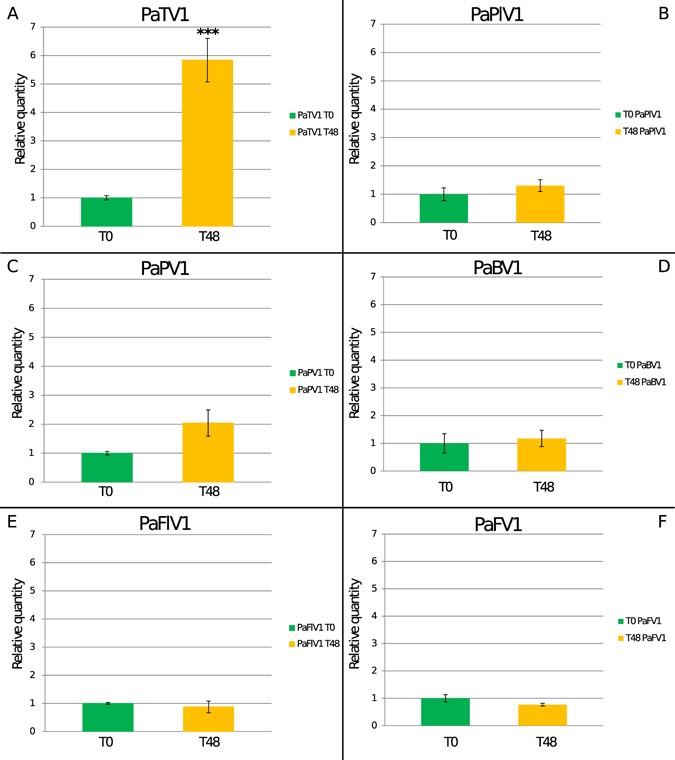

Figure 1
From: Mycoviruses of an endophytic fungus can replicate in plant cells: evolutionary implications
Absolute quantification of viral RNA in Nicotiana benthamiana protoplasts at T0 and T48 time points. Quantitative Reverse transcriptase PCR (qRT-PCR) data were used. We present the data as a fold change of viral RNA at T48 compared to T0 to which we arbitrarily assigned the value 1. In panel A absolute quantification of the Totivirus Penicillium aurantiogriseum totivirus 1 (PaTV1): quantification shows ca. 5 times more RNA at T48 (yellow bar) than T0 (green bar). In panels B, C, D, F and E quantification of the absolute virus RNAs shows no statistically significant difference over time. *P < 0.05 **P < 0.01 and ***P < 0.001.
