From: Genetic variation and phylogeographic structure of the cotton aphid, Aphis gossypii, based on mitochondrial DNA and microsatellite markers

Figure 6

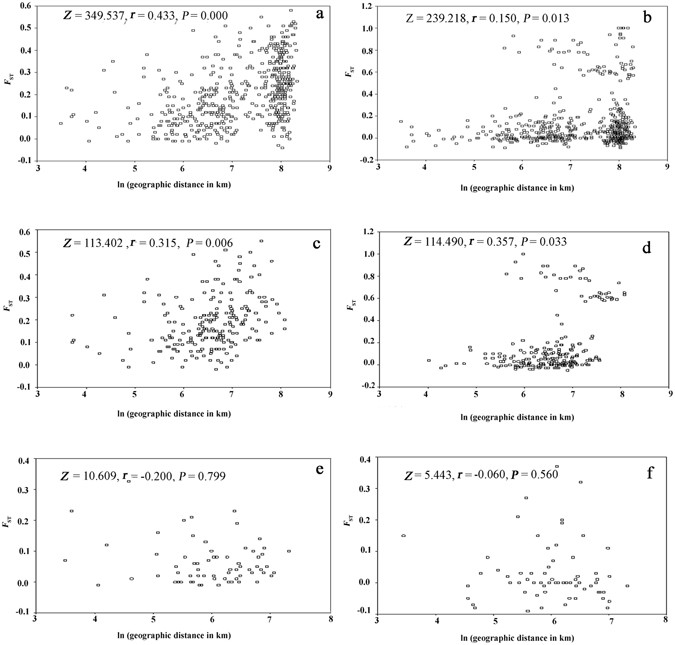

Correlation analysis between pairwise linearized F ST values and the logarithm of geographic distance in Chinese populations of Aphis gossypii based on microsatellites ((a) total population; (b) eastern region group; (c) western region group) and combined COI and Cytb ((d) total population; (e) eastern region group; (f) western region group).
