Figure 2

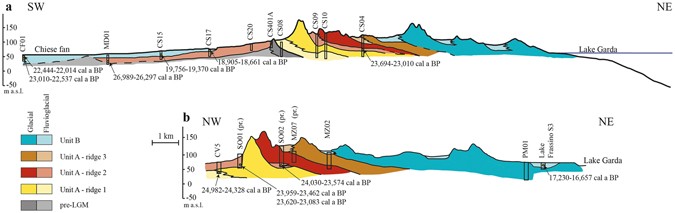

Cross-section of the Garda end-moraine system showing the stratigraphic architecture of the units related to the LGM glaciation; the labelled drillings (rectangle) and related dates (yellow spot) are referred to Table 1; the trace of the profiles is reported in Fig. 1.
