Figure 2
From: Combined magnetron sputtering and pulsed laser deposition of TiO 2 and BFCO thin films

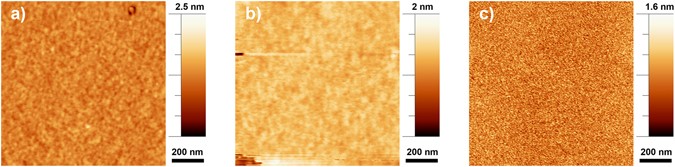

AFM images (on an area of 1 μm × 1 μm.) of the TiO2 films realized with the three different techniques (a) Magnetron Sputtering (MS), (b) Pulsed Laser Deposition (PLD) and (c) hybryd technique (MS/PLD) at 5 mTorr.
