Figure 6
From: Combined magnetron sputtering and pulsed laser deposition of TiO 2 and BFCO thin films

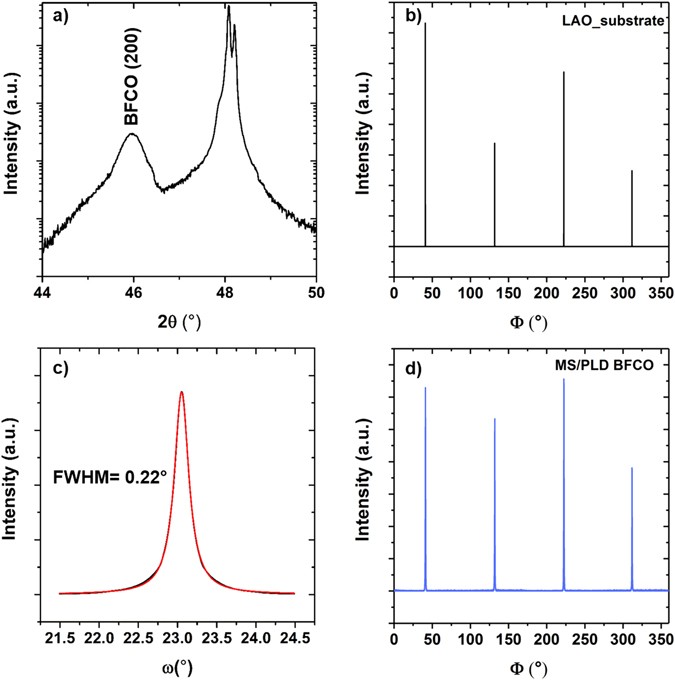

Detailed diffraction data from the BFCO layer grown at 750 °C with the hybrid technique. (a) 2θ-scan and (c) rocking curve of BFCO(002) peak. The red line is a Lorentzian fit to the data (black). Corresponding φ-scan measurements around the (200) reflection on the bare substrate (b) and the BFCO film (d) confirm the epitaxial growth of the film.
