Figure 1

From: Comparative transcriptomic analysis indicates genes associated with local and systemic resistance to Colletotrichum graminicola in maize

Figure 1

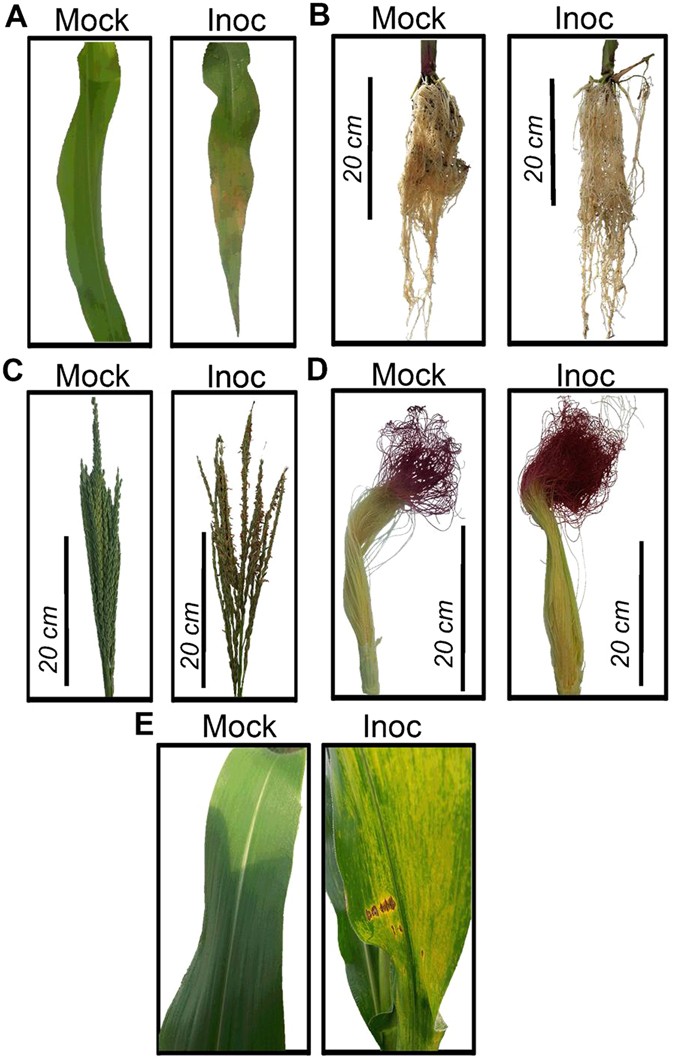

Local and systemic symptoms of anthracnose in Maize. Mock and inoculated (Inoc) maize leaf after 72 h.a.i (A). No symptom of disease was observed in inoculated roots 7 d.a.i (B). Male inflorescence showing clear symptoms of senescence in inoculated plants (C). A small increase in the development of inoculated female inflorescence can be observed compared to mock-plants (D). Maize plants in R1 stage showing anthracnose symptoms in inoculated leaves compared to mock-plants (E).
