Figure 4
From: Ancient River Inference Explains Exceptional Oriental Freshwater Mussel Radiations

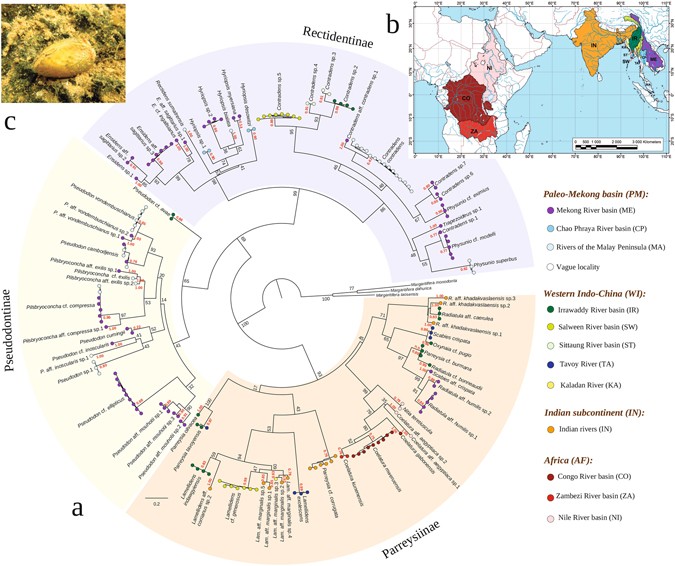

Spatial patterns in the biodiversity of the Unionidae from the Oriental Region and related African taxa discussed in this study. (a) Maximum likelihood tree of unique haplotypes obtained from RAxML HPC Black Box v. 8.2.9. Color circles correspond to the distribution range of each haplotype. Red numbers near terminal nodes are support values for each prospective species (MOTU) based on the Bayesian PTP model. Black numbers near other nodes are ML support values. The list of sequences is presented in Supplementary Table 1. (b) Map of the primary distribution areas of the Unionidae. The map was created using ESRI ArcGIS 10 software (www.esri.com/arcgis); the topographic base of the map was created with Natural Earth Free Vector and Raster Map Data (www.naturalearthdata.com). (c) Live specimen of Parreysia cf. burmana, Irrawaddy River catchment, Myanmar (Photo: Ivan N. Bolotov).
