Figure 2 | Scientific Reports

Figure 2

From: Secondary metabolite genes encoded by potato rhizosphere microbiomes in the Andean highlands are diverse and vary with sampling site and vegetation stage

Figure 2

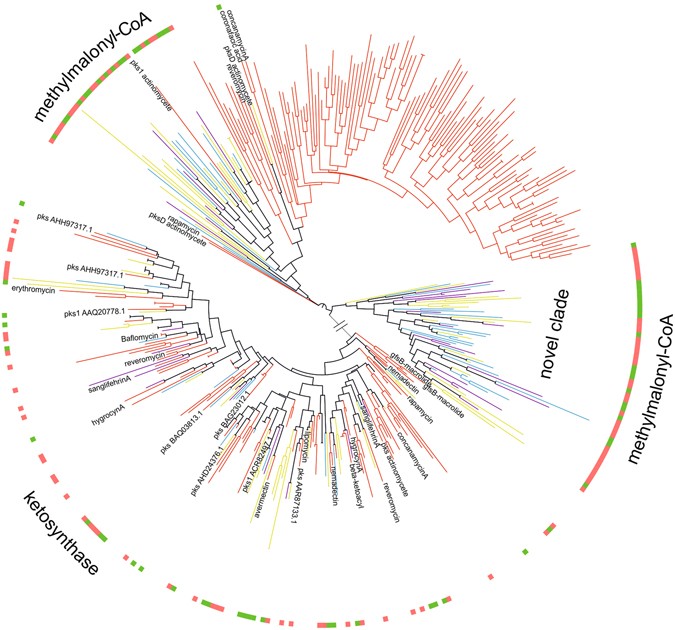

Phylogenetic tree showing the distribution of PKS sequences from Actinobacteria. Representative sequences from OTUs extracted after DNA sequences of KS and met-mal-CoA clustered separately at 85% sequence identity were subjected to multiple sequence alignment by ClustalW and neighbor-joining tree was displayed in iTOL2. Branches of NCBI-nt reference sequences were colored bright red, rhizosphere soil sequences were colored by site (sequences from P1 were colored in light yellow, P2 colored in aqua blue and P3 colored in magenta), and outer ring colored according to vegetation stage (sequences from emergence were colored in coral orange and senescence colored in olive green).
