Figure 2

From: Electro-Forming and Electro-Breaking of Nanoscale Ag Filaments for Conductive-Bridging Random-Access Memory Cell using Ag-Doped Polymer-Electrolyte between Pt Electrodes

Figure 2

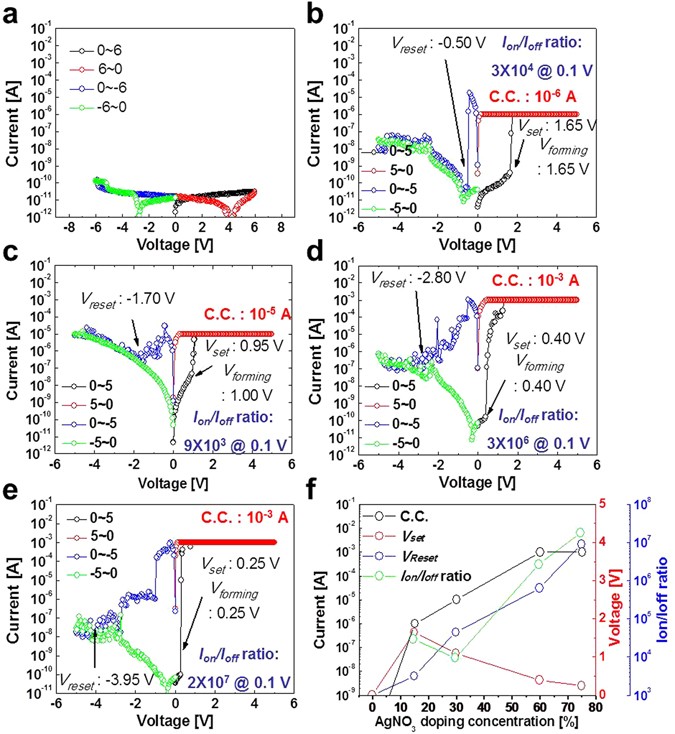

Dependence of bipolar switching characteristics on Ag doping concentration for Ag-doped PEO polymer-electrolyte based CBRAM cells. I–V curves for (a) 0 wt%, (b) 15 wt%, (c) 30 wt%, (d) 60 wt%, and (e) 75 wt%. (f) Compliance current level (C.C.), set voltage (V set ), reset voltage (V reset), and memory margin (I on /I off ).
