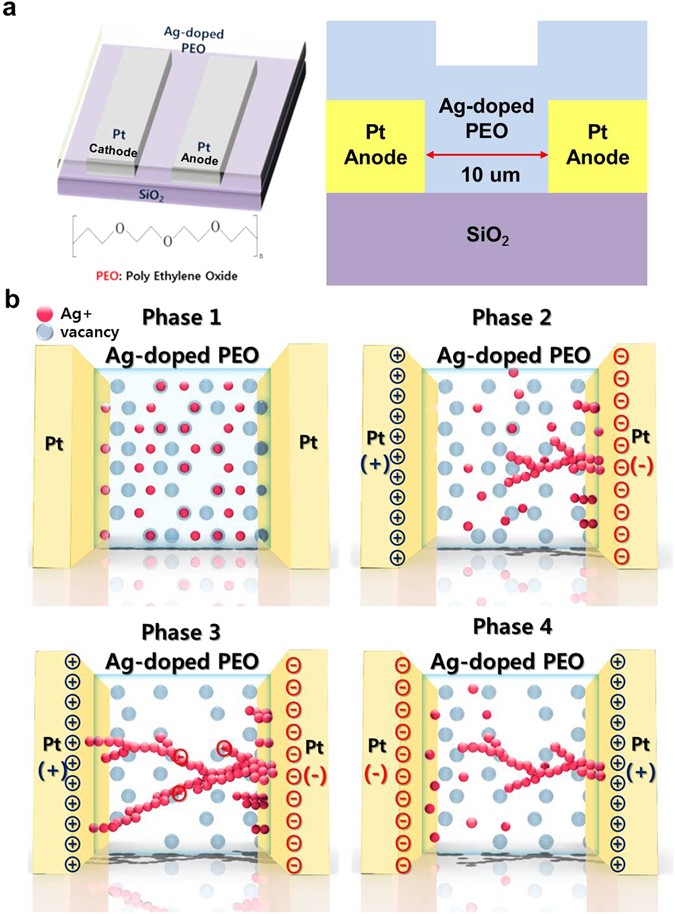

Figure 4
Lateral CBRAM cell with Ag-doped PEO polymer electrolyte between inert Pt electrodes. (a) Schematic device structure and (b) schematic drawing of electro-forming (set bias) and electro-breaking (reset bias) of Ag filaments in CBRAM cell.
