Figure 7

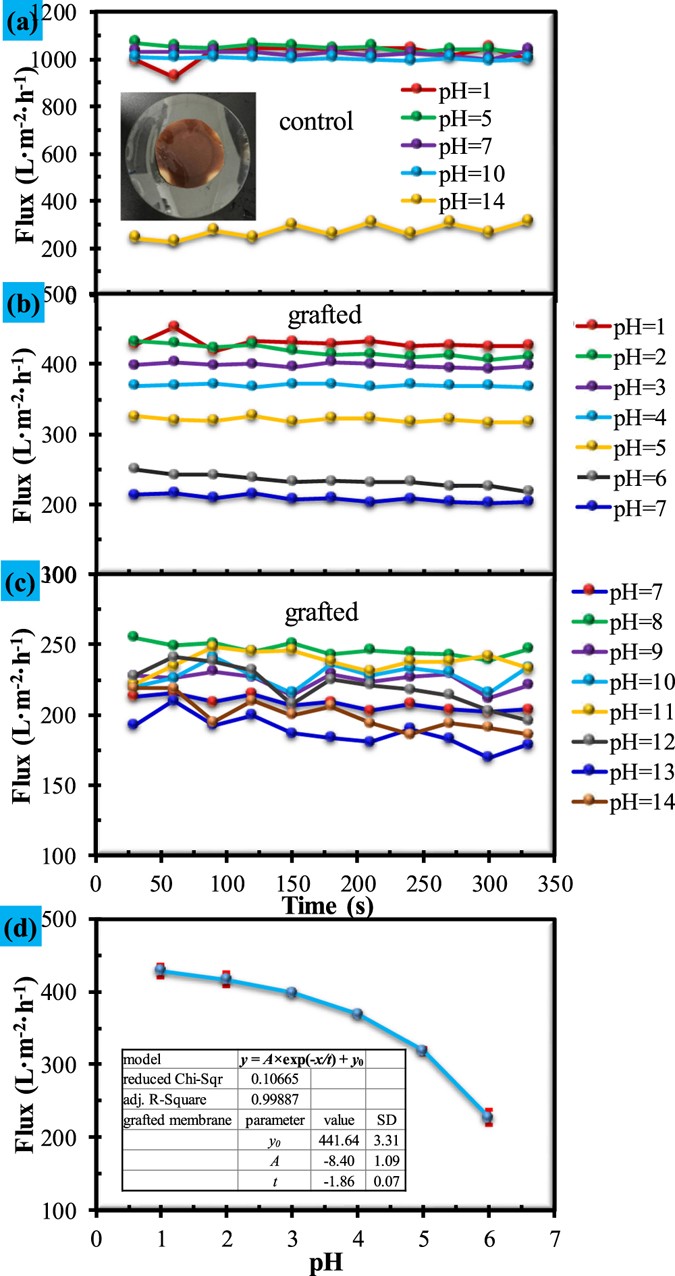

Flux variations of control and grafted membranes under different pH values: (a) control membrane flux at pH of 1, 5, 7, 10 and 14; (b) and (c) grafted membrane flux at pH of integer values in range of 1–14; (d) relationship between flux of the grafted membrane and pH values.
