Figure 8

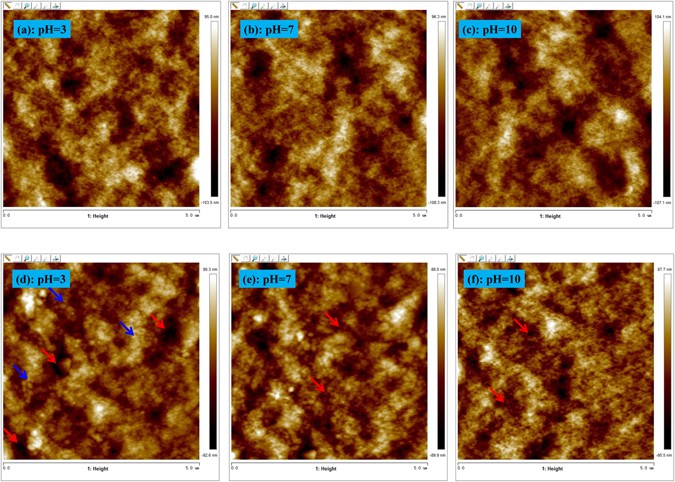

In situ surface topography variations of the control and grafted membranes under different pH values observed by AFM: (a–c) the control membrane under pH = 3, 7, 10, respectively; (d–f) the grafted membrane under pH = 3, 7, 10, respectively.
