From: Melatonin-mediated mitophagy protects against early brain injury after subarachnoid hemorrhage through inhibition of NLRP3 inflammasome activation

Figure 3

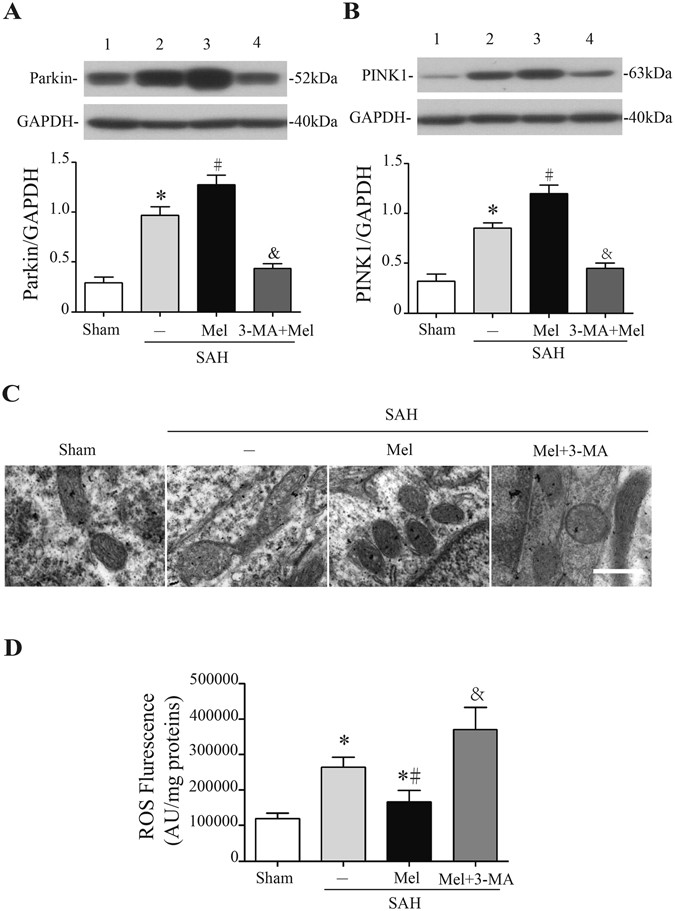

Effect of melatonin treatment on mitophagy and ROS generation. (A) The Western blot relative band density of Parkin; n = 6 per group. (B) The Western blot relative band density of PINK1; n = 6 per group. The cropped bands had been run under the same experimental conditions. (C) Ultrastructural changes in mitochondria in the ipsilateral basal cortex at 24 h after SAH induction. (D) The quantification of ROS levels in the ipsilateral basal cortex at 24 h after SAH; n = 6 per group. *P < 0.05 versus sham group, #P < 0.05 versus SAH + vehicle group, and &P < 0.05 versus SAH + Mel group.
