From: Myricetin protects Galleria mellonella against Staphylococcus aureus infection and inhibits multiple virulence factors

Figure 2

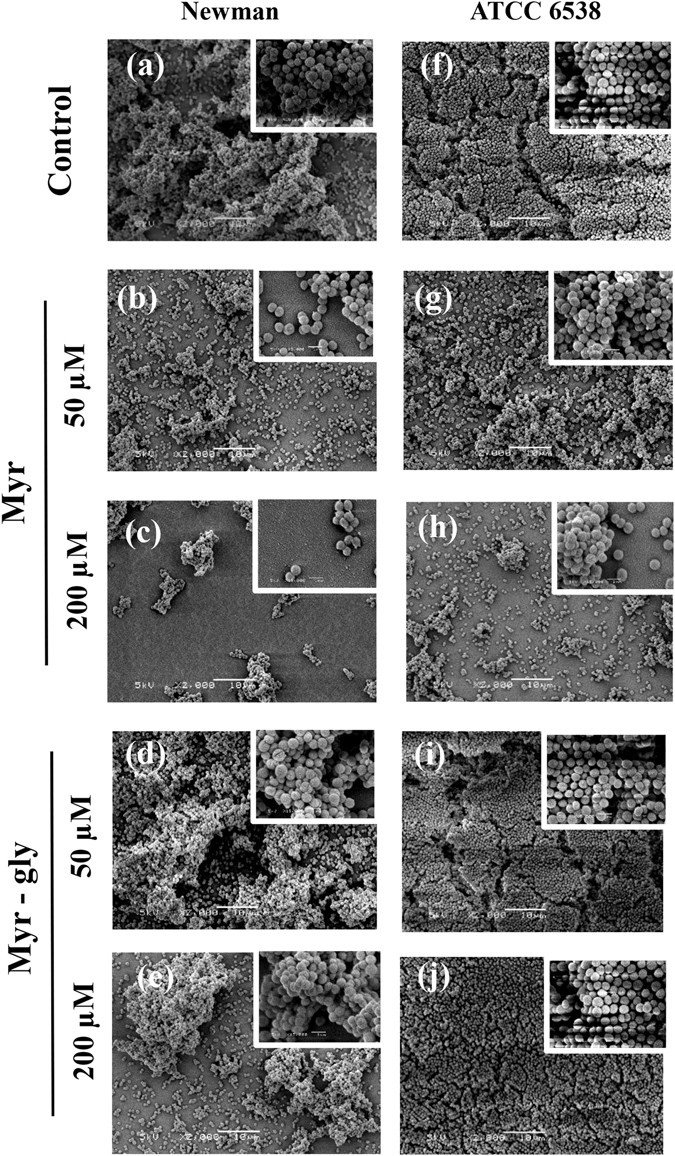

Scanning electron microscopy (SEM) images of biofilms. (a–c) S. aureus Newman treated with 0, 50 and 200 µM of Myr. (d,e) S. aureus Newman treated with 50 and 200 µM of Myr-gly. (f–h) S. aureus ATCC 6538 treated with 0, 50 and 200 µM of Myr. (i,j) S. aureus ATCC 6538 treated with 50 and 200 µM of Myr-gly. Scale bars: 10 µm (inserts in the images represent 1 µm).
