Figure 7
From: The lateral distance between a proton pump and ATP synthase determines the ATP-synthesis rate

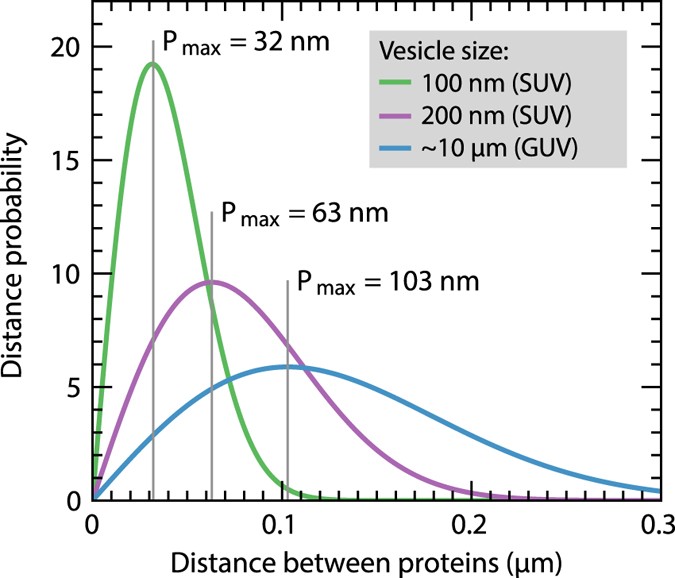

Calculated distance distribution of proteins in vesicles. Distance-probability distribution between cyt. bo 3 and ATP-synthase for the protein concentration in the ~10 μm GUVs (30 proteins/μm2) as well as for the 200 nm (80 proteins/μm2) and 100 nm (320 proteins/μm2) large unilamellar vesicles. The distance of highest probability (P max) is indicated in the figure. The probability distribution was obtained by calculating (see e.g. ref. 52) the probability of finding the nearest-neighbor to a particle in two dimensions for distances 0–300 nm.
