Figure 2
From: RNAi Screen and Proteomics Reveal NXF1 as a Novel Regulator of IRF5 Signaling

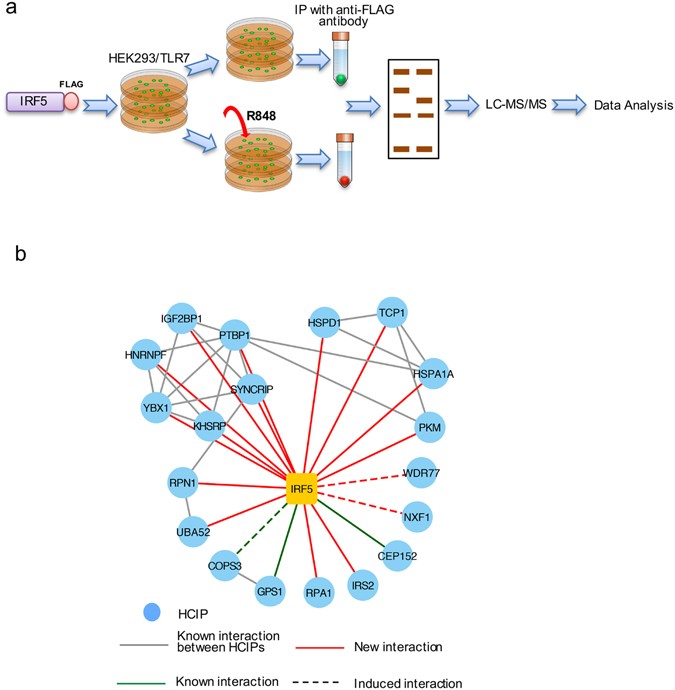

Affinity purification coupled with mass spectrometry (AP-MS) analysis of IRF5 protein complex. (a) Pipeline for AP-MS analysis of IRF5. (b) IRF5 protein interaction network. Legends are indicated. HCIP stands for high confidence candidate interacting protein.
