Figure 6
From: RNAi Screen and Proteomics Reveal NXF1 as a Novel Regulator of IRF5 Signaling

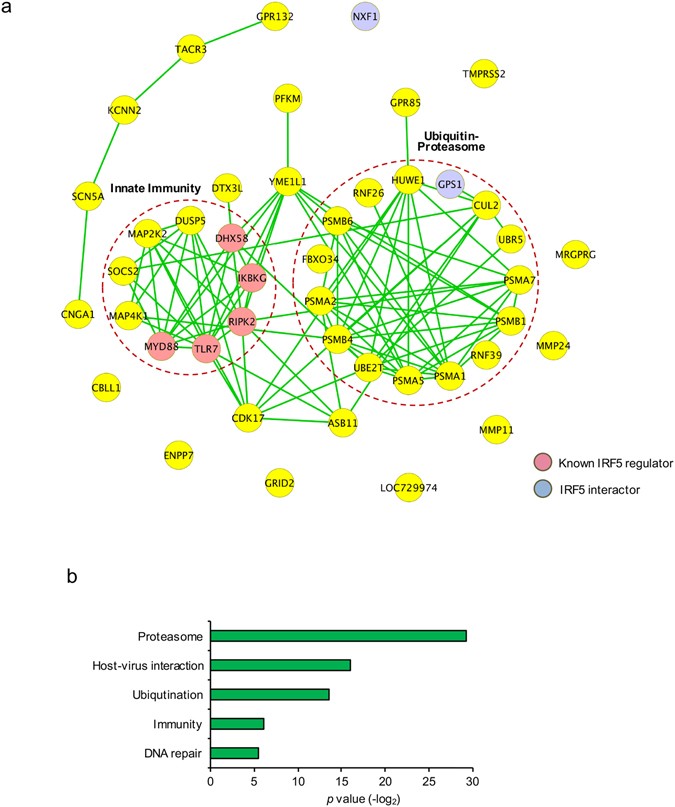

Functional analysis of IRF5 pathway. (a) STRING analysis of the validated RNAi hits. Medium confidence (0.4) of STRING was adopted. Pathways of innate immunity and proteasome are indicated by red dashed circle. (b) Negative log2 (p values) of enriched terms according to the GO of the cellular pathways.
