Figure 8
From: Gut Dysbiosis and Neurobehavioral Alterations in Rats Exposed to Silver Nanoparticles

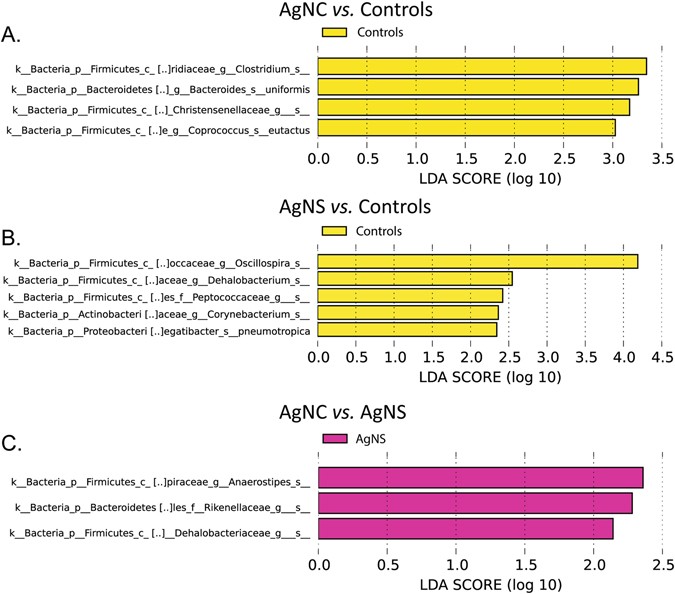

LEfSe analysis of fecal microbiome data from AgNC, AgNS, and control groups. (A) Comparison of AgNC to controls. The linear discriminant analysis (LDA) score revealed that Clostridium spp., Bacteroides uniformis, Christensenellaceae, and Coprococcus eutactus were greater in control rats than those treated with AgNC. No bacteria were greater in AgNC-exposed rats compared to controls. (B) Comparison of AgNS-treated rats to controls revealed that Oscillospira spp., Dehalobacterium spp., Peptococcaeceae, Corynebacterium spp., Aggregatibacter pneumotropica were greater in the latter group. No bacteria were greater in the AgNS group relative to controls. (C) Comparison of AgNS to AgNC groups showed that Anaerostipes spp., Rikenellaceae, and Dehalobacteriaeceae were greater in the former group. No bacteria were greater in the AgNC group relative to AgNS group.
