Figure 2
From: Wide-angle scanning planar array with quasi-hemispherical-pattern elements

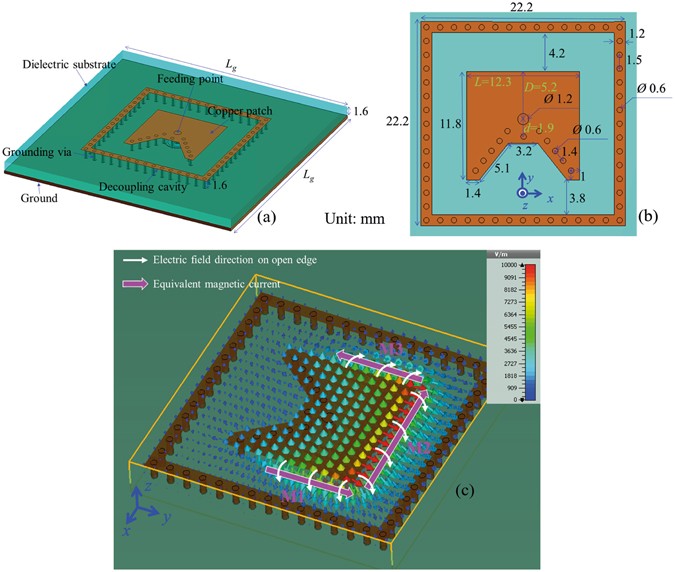

Geometry of the TMC antenna. (a) Perspective view and (b) partial enlarged detail. The color brown represents copper material and the color aquamarine represents dielectric substrate. (c) Electric field distribution. The directed equivalent magnetic currents have been marked in the figure. (Unit: mm).
