Figure 8
From: Wide-angle scanning planar array with quasi-hemispherical-pattern elements

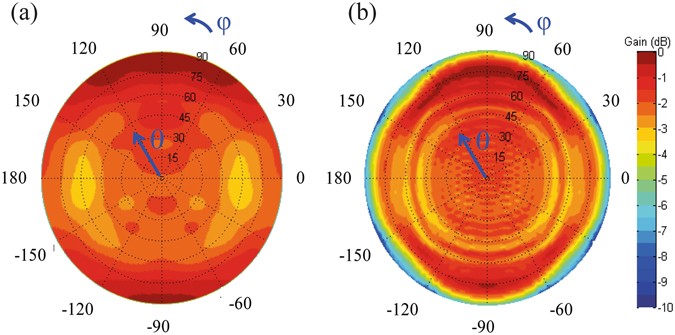

Simulated normalized patterns at 5.8 GHz of the proposed TMC antenna: (a) with an infinite ground and (b) with a finite ground. The finite ground is a 1200 × 1200 mm2 rectangular copper plate.
