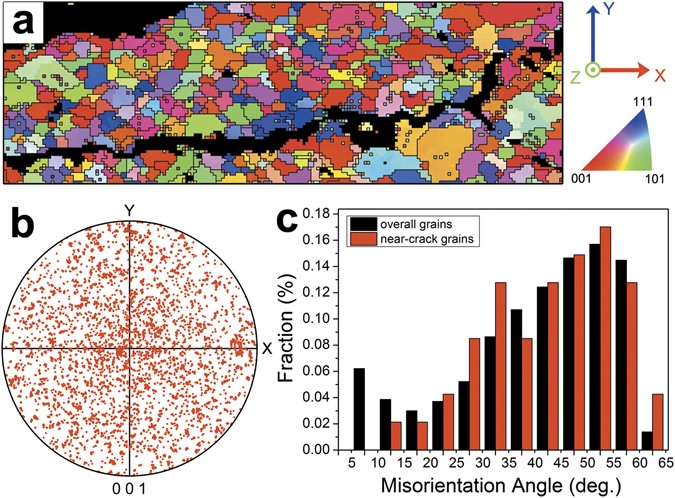

Figure 2

Crystal orientation characterization of the crack containing region. (a) The inverse pole figure map showing the crystal orientation along xx-axis. (b) The inverse pole figure showing random crystal orientation distribution in the scanned region. (c) Statistical distribution of GB misorientation for the overall scanned area and the grains adjacent to the crack, respectively.
