From: Statistical study of ductility-dip cracking induced plastic deformation in polycrystalline laser 3D printed Ni-based superalloy

Figure 3

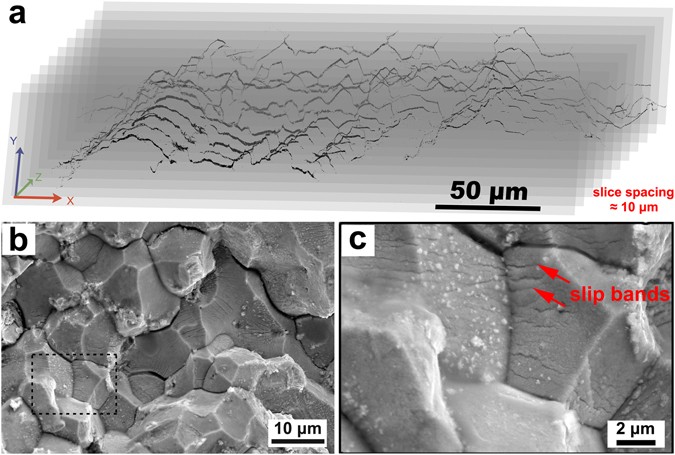

3D morphological reconstruction of the crack plane and its SEM characterization. (a) Slices reconstruction of the crack with the slice-spacing of ~10 μm. (b) Low magnification image of the crack plane, with sharp crystal facets. (c) The high magnification topography of the dashed area (b), exhibiting nano sized precipitates and slip bands (red arrows).
