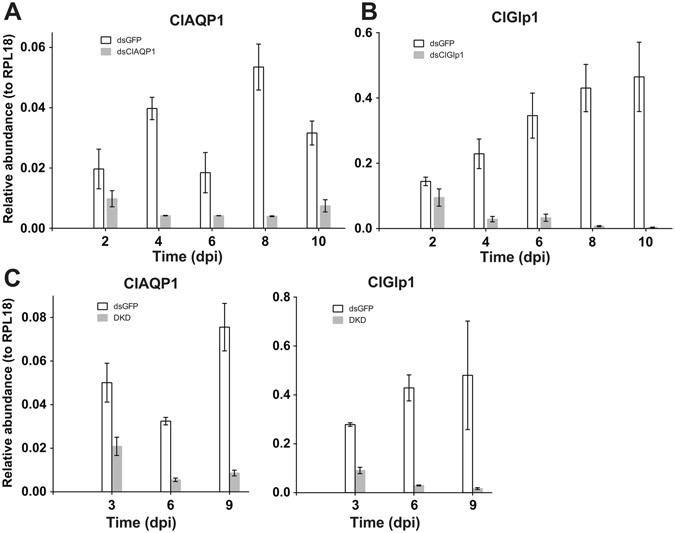

Figure 4
From: Functional characterization of Aquaporin-like genes in the human bed bug Cimex lectularius
RNA interference (RNAi) is highly efficient in C. lectularius. Controls were injected with dsRNA against GFP. (A) RNAi of ClAQP1. (B) RNAi of ClGlp1. (C) Simultaneous knockdown of ClAQP1 and ClGlp1. DKD = double knockdown. The graph shows mean ± SD.
