Figure 2

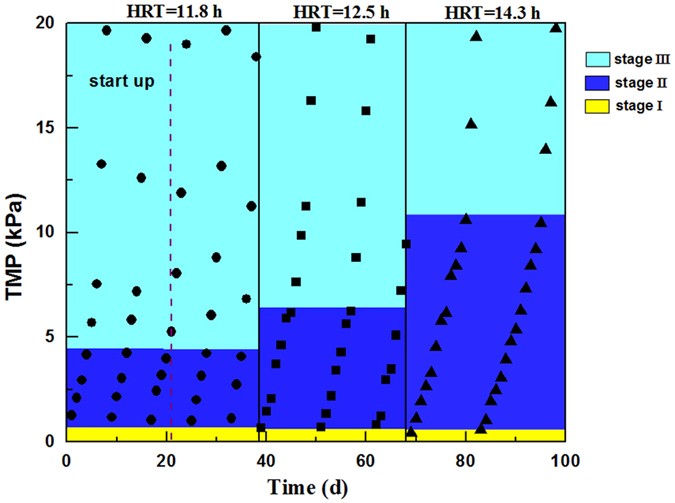

The variation of TMP against operation time under different conditions. Yellow area represents the stage I of TMP changes, Blue area represents the stage II of TMP changes, Cyan area represents the stage III of TMP changes.
