Figure 4
From: Synthesis of porous polymer/tissue paper hybrid membranes for switchable oil/water separation

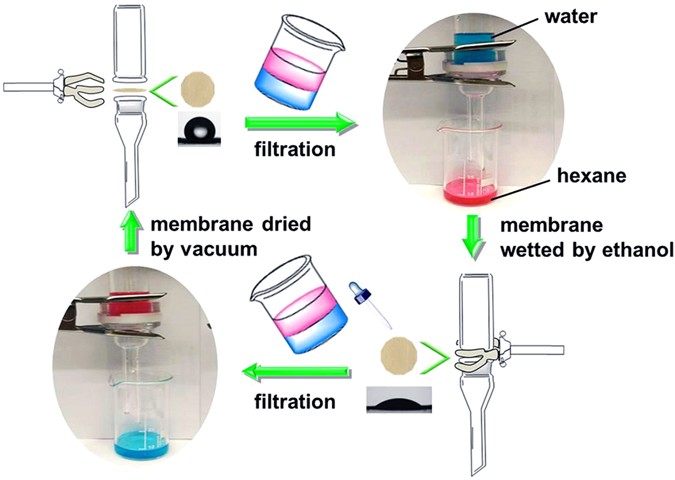

Illustration of the switchable oil/water separation process with the solvent-responsive membrane PPHM-3. The membrane PPHM-3 without treated with ethanol can let hexane pass through but not water; after ethanol treatment, it can let water pass through but not hexane.
