Figure 3

From: Identification of commonly altered genes between in major depressive disorder and a mouse model of depression

Figure 3

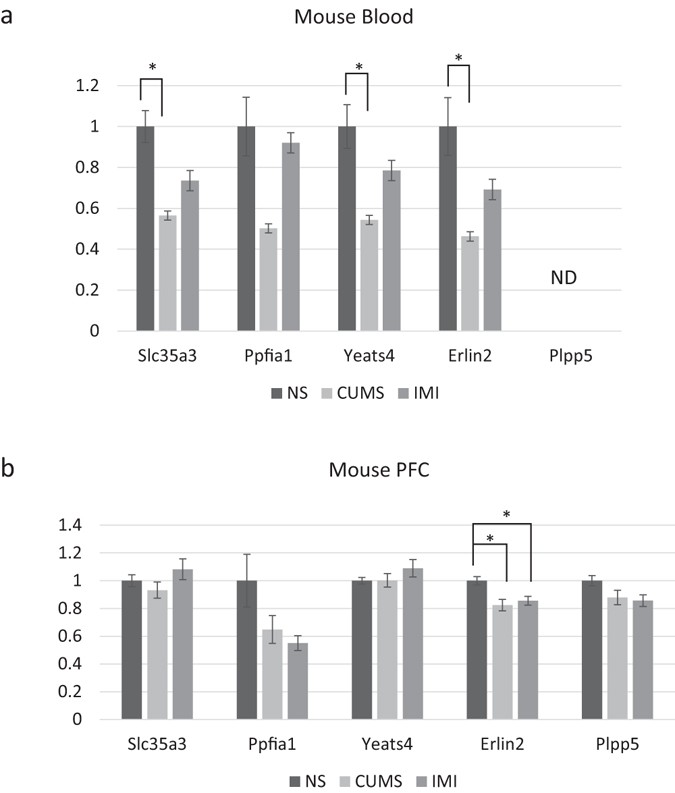

The expression levels of candidate genes in murine blood cells, and in murine prefrontal cortex. (a,b) The expression levels of Slc35a3, Ppfia1, Yeats4, Erlin2, and Plpp5 mRNA in non-stressed (NS), chronic, ultra-mildly stressed (CUMS), and CUMS + imipramine-treated mice (IMI) (a; blood cells; NS, N = 6; CUMS, N = 6; IMI, N = 5) (b; PFC; NS, N = 8; CUMS, N = 8; IMI, N = 8). Specific primers for Hist1h2al could not be designed. Plpp5 could not be detected (ND). Data indicate the mean ± SEM. *p < 0.05.
