Figure 1

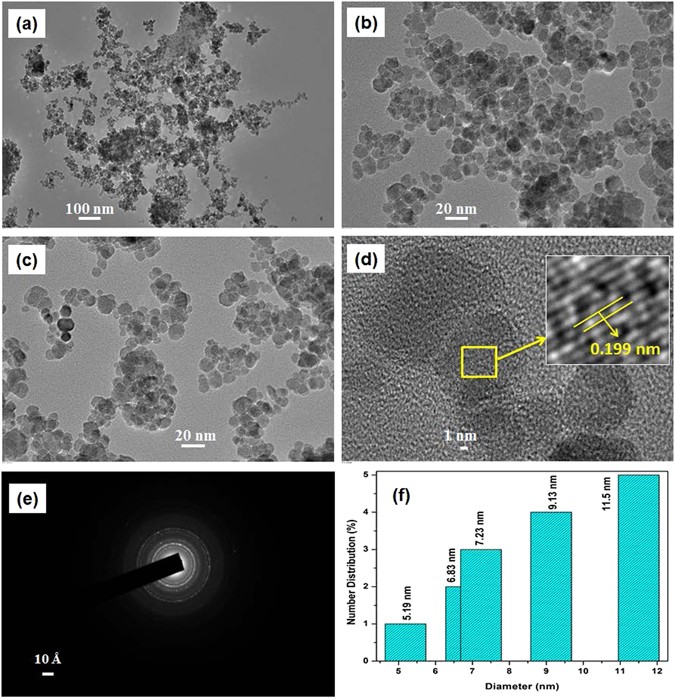

TEM images of L-Cyst-Fe3O4 NPs (a) at 20 kx; (b,c) at 10 kx magnification; (d) HR-TEM and inset shows lattice plane; (e) SAED pattern and (f) particle distribution of L-Cyst-Fe3O4 NPs.
Figure 1 | Scientific Reports
TEM images of L-Cyst-Fe3O4 NPs (a) at 20 kx; (b,c) at 10 kx magnification; (d) HR-TEM and inset shows lattice plane; (e) SAED pattern and (f) particle distribution of L-Cyst-Fe3O4 NPs.
