From: Evaluation of intraretinal migration of retinal pigment epithelial cells in age-related macular degeneration using polarimetric imaging

Figure 2

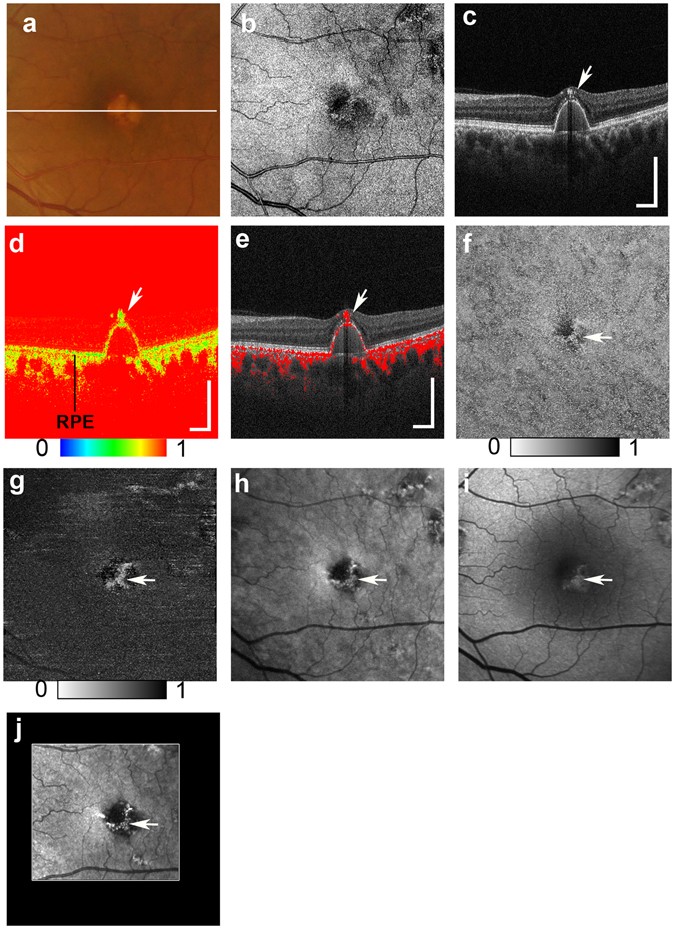

Multimodal imaging of drusenoid pigment epithelial detachment (PED) from the left eye of a 65-year-old male. The white line in the color fundus photograph (a) indicates the scan line of the PS-OCT B-scan images (c,d,e). An en face projection of the standard OCT image (b). The standard OCT B-scan image (c) showing HRF (white arrow). A pseudocolor image of the corresponding DOPU B-scan image (d) and composite DOPU B-scan OCT images (e) showing depolarization at the HRF (white arrows). The scale bars represent 500 μm × 500 μm. An en face projection image of the minimum DOPU along the whole depth (f) and an en face projection of the minimum DOPU anterior to the retinal pigment epithelium (g), which showed depolarization at corresponding locations of HRF (white arrows). The corresponding NIR-AF image (h) and SW-AF image (i) show hyper-AF at corresponding locations of HRF (white arrows). A depolarized light image using the PS-SLO (j) shows depolarization at corresponding locations of HRF (white arrow). All abbreviations used are as defined in the figure legend for Fig. 1.
