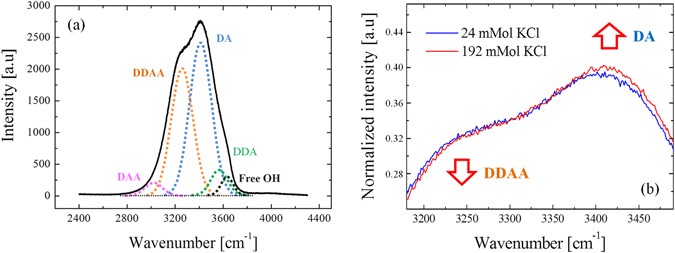

Figure 3
(a) Typical Raman spectrum collected from water solutions in the region 2400–4200 cm−1 and the 5 sub-bands used to interpret the structure of liquid water. (b) Example of spectral variation induced by ionic concentration in the millimolar range (total integrated intensity of each spectrum was normalized to 100).
