Figure 3
From: Improved retinal function in RCS rats after suppressing the over-activation of mGluR5

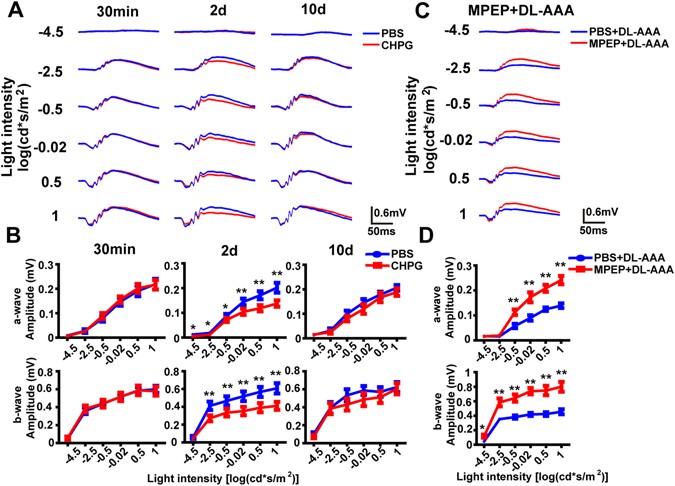

Effects of CHPG and MPEP + DL-AAA on the ERG. (A) Example ERG waveforms recorded from CHPG treated eyes (red) and PBS-injected eyes (blue) at 30 min, 2 days and 10 days post-injection. (B) Top row: Average stimulus-response curves for a-wave amplitude in CHPG-treated and PBS-treated eyes at 30 min, 2 days and 10 days post-injection (n = 6, 11, 6). Bottom row: The same for b-wave amplitude. (C) Representative ERG waveforms for the MPEP + DL-AAA group (red) and PBS + DL-AAA group (blue) at 2 days after MPEP/PBS injection (n = 6). (D) Top: Average stimulus-response curves for a-wave amplitude in DL-AAA + MPEP and DL-AAA + PBS treated eyes, 2 days after MPEP/PBS injection (n = 6 per data point). Bottom: The same for b-wave amplitude. Data are shown as mean ± SEM. *p < 0.05, **p < 0.01.
