From: Comprehensive analysis of passive generation of parabolic similaritons in tapered hydrogenated amorphous silicon photonic wires

Figure 10

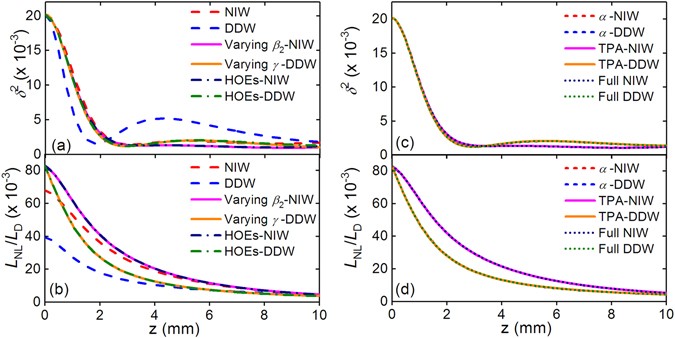

(a) The mismatch factor δ 2 and (b) ratio L NL/L D at 2150 nm for NIW (red dashed curves), DDW (blue dashed curves), varying β 2-NIW (magenta solid curves), varying γ-DDW (orange solid curves), HOEs-NIW (navy dot-dashed curves) and HOEs-DDW (olive dot-dashed curves). (c) The mismatch factor δ 2 and (d) ratio L NL/L D at 2150 nm for α-NIW (blue dashed curves), α-DDW (red dashed curves), TPA-NIW (magenta solid curves), TPA-DDW (orange solid curves), Full NIW (navy dot-dashed curves), Full DDW (olive dot-dashed curves).
