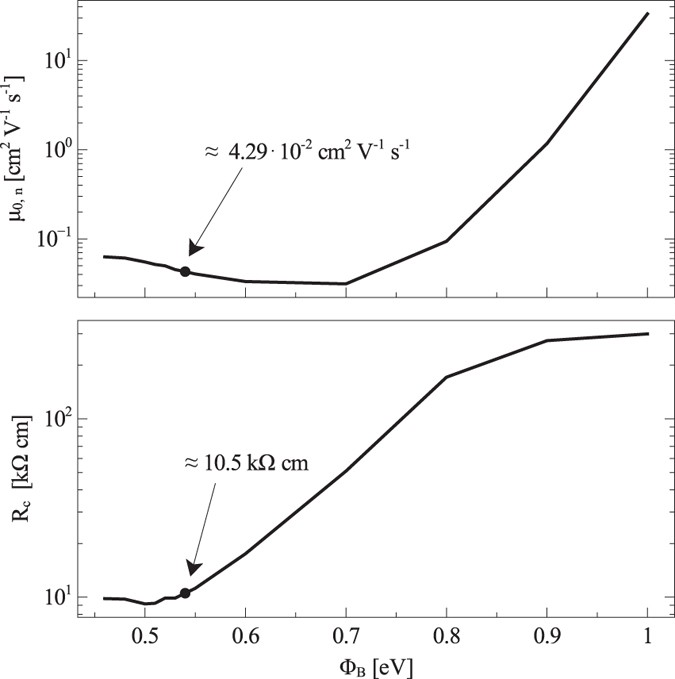

Figure 3

Low–field, low–density mobility μ _0,n (top) and contact resistance R _C (at V _g = +35 V, bottom), for different values of the injection barrier Φ_B. The dots on the curves identify the Φ_B value that simultaneously yields in the best fitting of OTFT transfer characteristic curves and of MIS capacitor CF curves.
