Figure 2

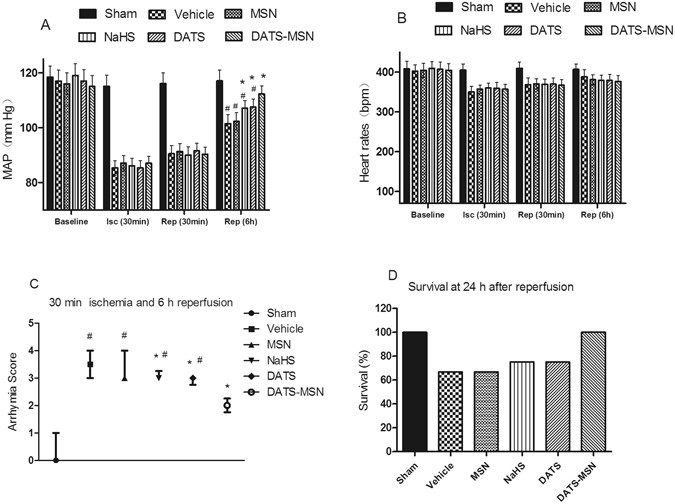

Hemodynamics alterations and survival during the ischemia and reperfusion process: mean arterial pressure (MAP) (A), heart rates (B) and in arrhythmia score (C) in 30 min ischemia and 6 h reperfusion process; and survival (D) at 24 h after reperfusion. *P < 0.05 compared with the Vehicle; #P < 0.05 compared with the DATS-MSN group (mean ± SEM, n = 6).
