Figure 3
From: Phonon engineering in proximity enhanced superconductor heterostructures

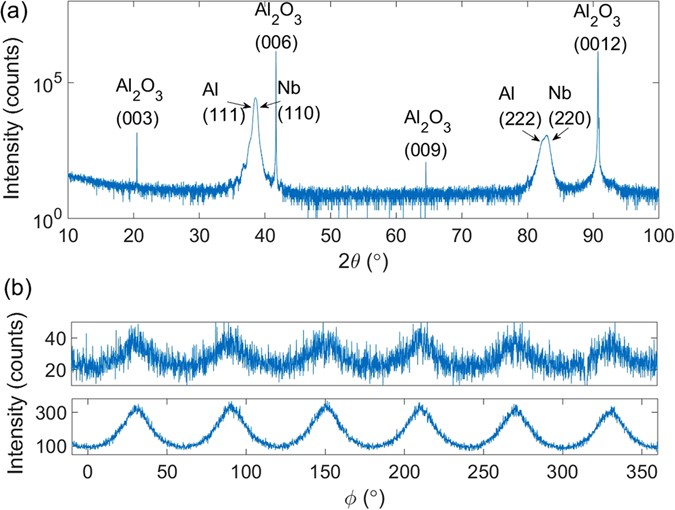

(a) High-resolution XRD pattern of the Al/Nb/Al trilayer film on the c-cut sapphire. (b) Azimuthal XRD data (“ϕ-scan”) reveals the six-fold symmetry of the off-axis (200) reflections from Al and Nb, respectively.
