Figure 1

From: Overexpression of SlPRE2, an atypical bHLH transcription factor, affects plant morphology and fruit pigment accumulation in tomato

Figure 1

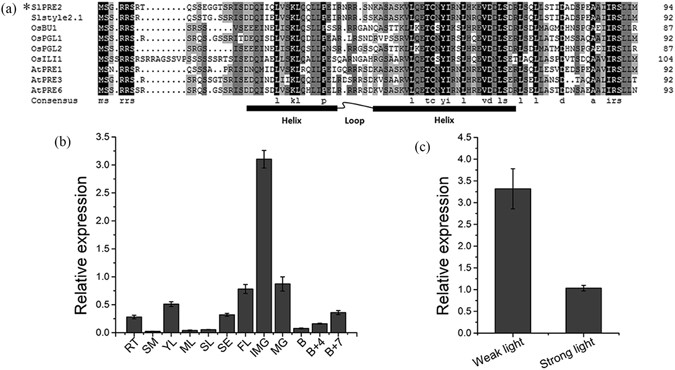

Multiple sequence alignment and expression profile of SlPRE2. (a) Multiple sequence alignment of SlPRE2 and other bHLH proteins. The SlPRE2 and Slstyle2.1 are proteins from tomato. OsBU1, OsPGL1, OsPGL2, OsILI1 are proteins from rice. AtPRE1–6 are proteins from Arabidopsis. Black and gray backgrounds indicate identical and similar amino acids. Convergence in structure is indicated by black box and curve. (b) The relative expression patterns of SlPRE2 in wild type tomato. RT, root; SM, stem; YL, young leaf; ML, mature leaf; SL, senescent leaf; SE, sepal; FL, flower; IMG, immature green fruit; MG, mature fruit; B, breaker fruit; B + 4, 4 days after breaker stage; B + 7, 7 days after breaker stage. (c) The relative expression levels in weak and strong light growth condition for 8 hours. Data are the mean ± SD of three biological replicates.
