Figure 4

From: A novel protein kinase inhibitor IMB-YH-8 with anti-tuberculosis activity

Figure 4

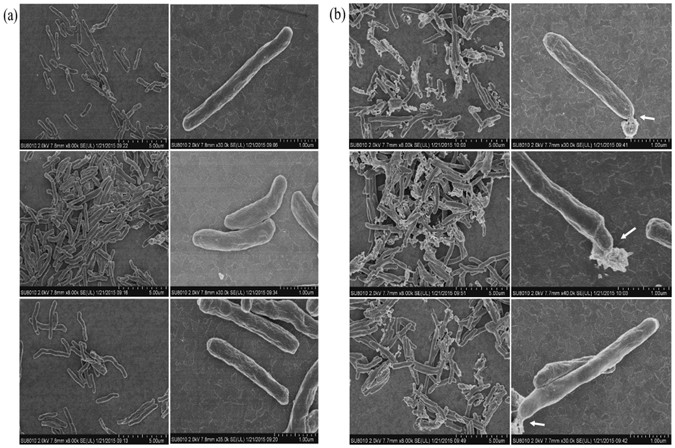

Scanning electron microscopy of untreated and 1 μg/ml IMB-YH-8 treated M. tuberculosis H37Rv for 5 days. (a) Untreated M. tuberculosis H37Rv (b) 1 μg/ml IMB-YH-8 treated M. tuberculosis H37Rv. Three independent experiments for each group are shown. Left panel, bars indicate 5 μm; right panel, bars indicate 1.0 μm. Arrows indicate changes in cell wall morphology.
