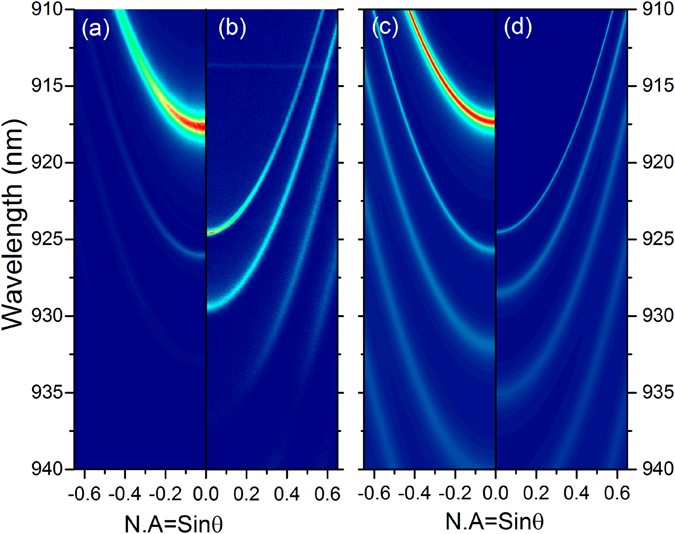

Experimental emission dispersion relations recorded on the (a) Tamm plasmon and (b) super Tamm plasmon (e = 35 nm) areas. (c) and (d) corresponds to reflectivities transfer matrix calculations on a Tamm and super Tamm structure, respectively.
