Figure 2

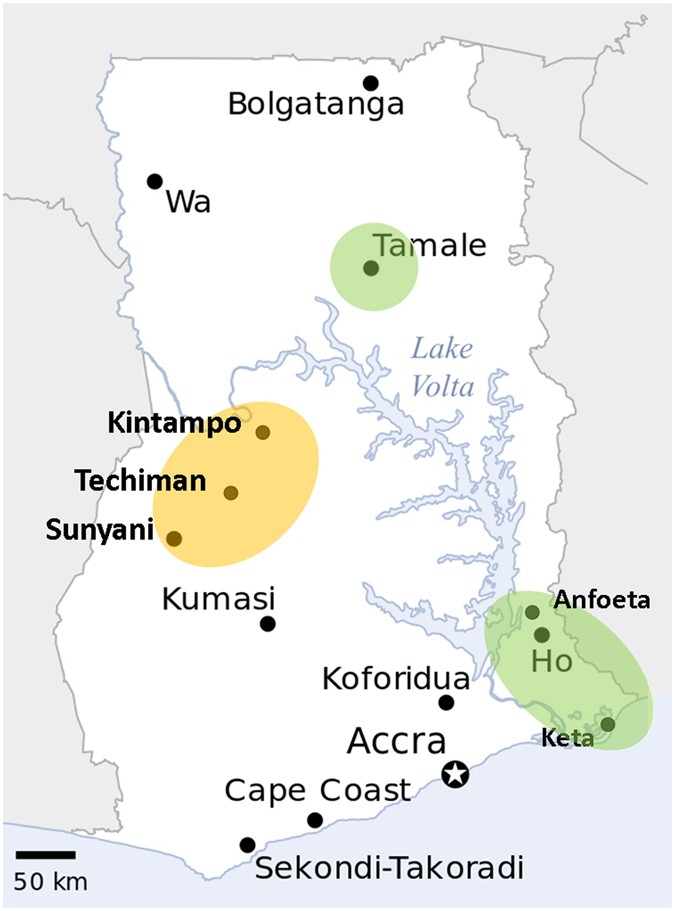

Survey results. Map of Ghana showing three survey locations (highlighted), major towns and towns closest to collection sites. Both species of Spodoptera frugiperda were found in samples from Keta and Anfoeta (Volta), and Tamale (Northern), shaded green, but only S. frugiperda sp. 1 (ACE4782) from collections around Techiman and five nearby communities (Brong Ahafo), shaded brown. Small larvae of Busseola fusca were also collected in the Brong Ahafo samples. Based on an OCHA/ReliefWeb created by the UN Office for the Coordination of Humanitarian Affairs (OCHA), downloaded from Wikipedia (https://commons.wikimedia.org/wiki/File:Ghana_-_Location_Map_(2013)_-_GHA_-_UNOCHA.svg) under a CC BY 3.0 license, and edited using Microsoft Publisher TM and Adobe Photoshop Elements TM.
