Figure 3 | Scientific Reports

Figure 3

From: Genome-wide identification of Major Intrinsic Proteins in Glycine soja and characterization of GmTIP2;1 function under salt and water stress

Figure 3

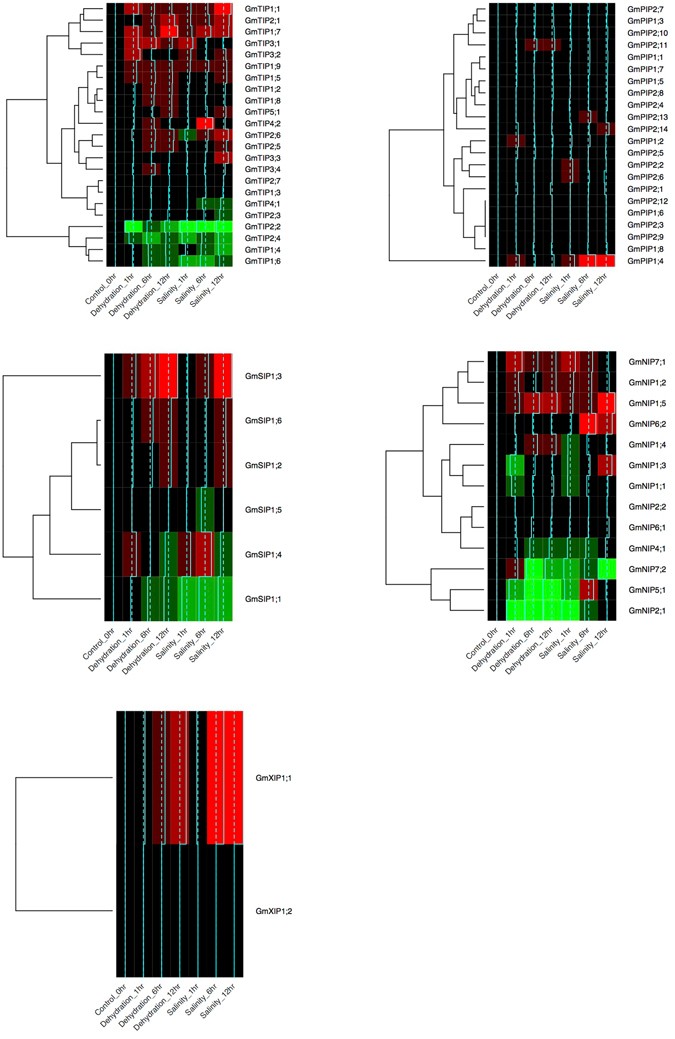

Expression profiles of GmAQPs under salt and dehydration. Expression of different GmAQPs after salinity and dehydration stress at different time points plotted as heatmaps. The expression data (Reads Per Kilobase Million) values were plotted after normalization for each gene with respect to control. The color pattern shows the range of expression from lowest expression level (green) to highest expression level (red), black is the median expression level.
