Figure 5
From: Biomimetic Molecular Signaling using DNA Walkers on Microparticles

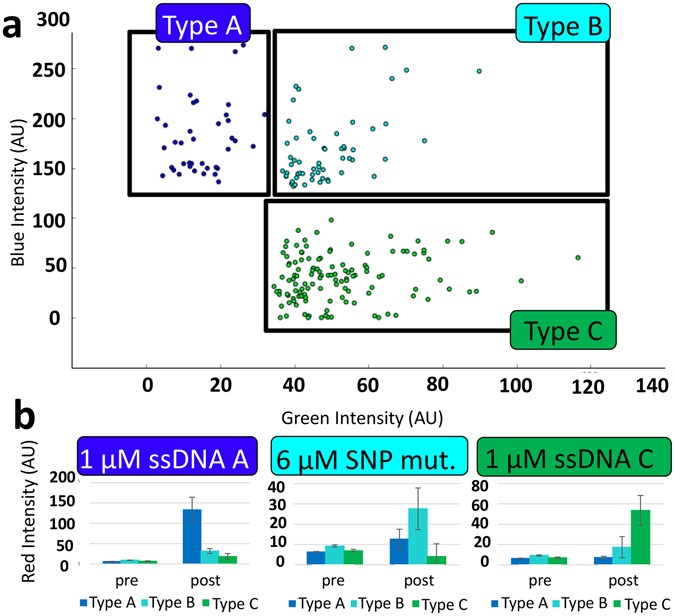

Results of automated image analysis using Python. (a) Images of particles are sorted according to their blue/green fluorescence. A scatter plot shows how the blue, green and teal particle data are sorted. (b) Red fluorescence intensity is graphed before and after adding the respective ssDNA. Error bars are the standard deviation of the mean of 9 images.
