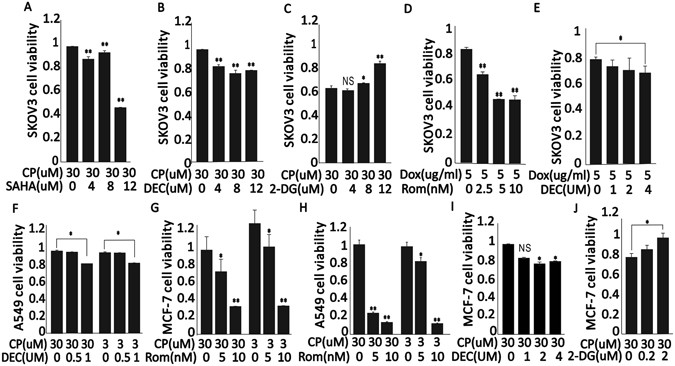

Figure 2
From: Epigenetic targeting drugs potentiate chemotherapeutic effects in solid tumor therapy
ETD Increases the sensitivity to DTD induced apoptosis. (A,B and C), Skov3 cell viability when cells were exposed to 30 uM CP combined with 0 uM, 4 uM, 8 uM or 12 uM SAHA for 24 h, 0 uM, 1 uM, 2 uM or 4 uM DEC for 24 h, or 0 uM, 0.2 uM, 2 uM or 20 uM 2-DG for 36 h. (D and E) Skov3 cell viability when cells were exposed to 5 ug/ml DOX combined with 0 nM, 2.5 nM, 5 nM or 10 nM Rom for 24 h or 0 uM, 1 uM, 2 uM or 4 uM DEC for 24 h. (F) A549 cell viability when cells were exposed to 30 uM or 3 uM CP combined with 0 uM, 0.5 uM, 1 uM DEC for 24 h. (G) MCF7 cell viability when cells were exposed to 30 uM or 3 uM CP combined with 0 nM, 5 nM or 10 nM Rom for 24 h. (H) A549 cell viability when cells were exposed to 30 uM or 3 uM CP combined with 0 nM, 5 nM or 10 nM Rom for 24 h. (I and J), MCF7 cell viability when cells were exposed to 30 uM CP combined with 0 uM, 1 uM, 2 uM or 4 uM DEC for 24 h or 0 mM, 0.2 mM, 2 mM or 20 mM 2-DG for 36 h. (* means P < 0.05, ** means P < 0.001, n ≥ 3.)
