Figure 2
From: Current Induced Resistive State in Fe(Se,Te) Superconducting Nanostrips

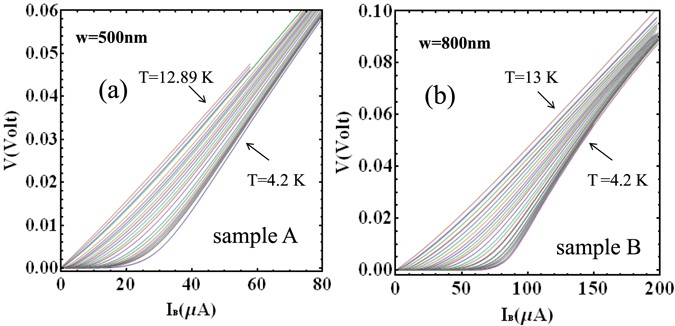

Current voltage characteristics: (a) Sample A, w = 500 nm. (b) Sample B, w = 800 nm for different temperatures between 4.2 K and 13 K. Sample A: (T(K) = 4.2, 4.88, 4.97, 5.1, 5.29, 5.45, 5.72, 6.11, 6.38, 6.89, 7.31, 7.58, 7.88, 8.21, 8.5, 8.81, 9.19, 9.42, 9.74, 10.15, 10.96, 11.19, 11.84, 12.89). Sample B: (T(K) = 4.2, 4.61, 4.78, 5.0, 5.33, 5.42, 5.86, 5.99, 6.46, 6.54, 6.99, 7.35,7.83, 8.29, 8.53, 8.81, 9.12, 9.44, 9.82, 10.2, 10.62, 11.06, 11.13, 11.63, 12.16, 12.29, 13.0).
