Figure 3
From: Towards conductive textiles: coating polymeric fibres with graphene

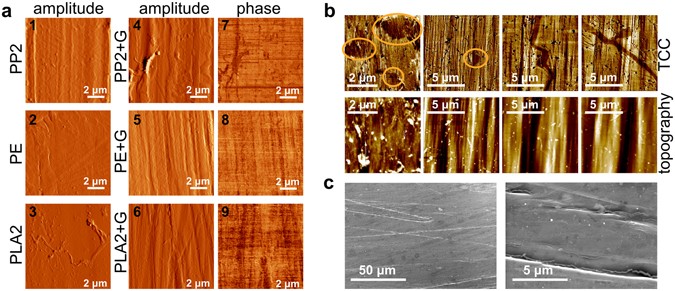

(a) Atomic Force Microscopy amplitude images of the fibres before coating: PP1 (1); PE (2) and PLA (3); amplitude and phase images of graphene-coated fibres: PP (4 and 7); PE (5 and 8) and PLA (6 and 9) showing a continuous graphene coverage. (b) Scanning Thermal Microscopy thermal conductivity contrast (TCC, top row) and topography (bottom row) images. (c) Scanning Electron Microscopy images showing details of holes and cracks in the graphene coverage of PP textile fibres.
