Figure 4
From: Towards conductive textiles: coating polymeric fibres with graphene

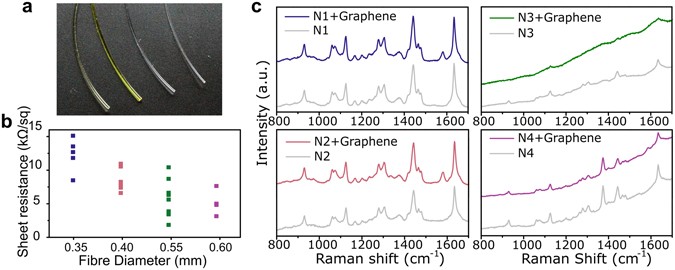

(a) Photo of the 4 samples, left to right: N1, N2, N4 and N4. (b) Sheet resistance for graphene-coated nylon fibres N1 (blue); N2 (pink); N3 (green) and N4 (purple). (c) Raman spectra of bare fibres (grey) and corresponding graphene-coated fibres (same colour scheme as in (a)).
